Evident IX83 IXplore SpinSR Yokogawa SoRa

Description

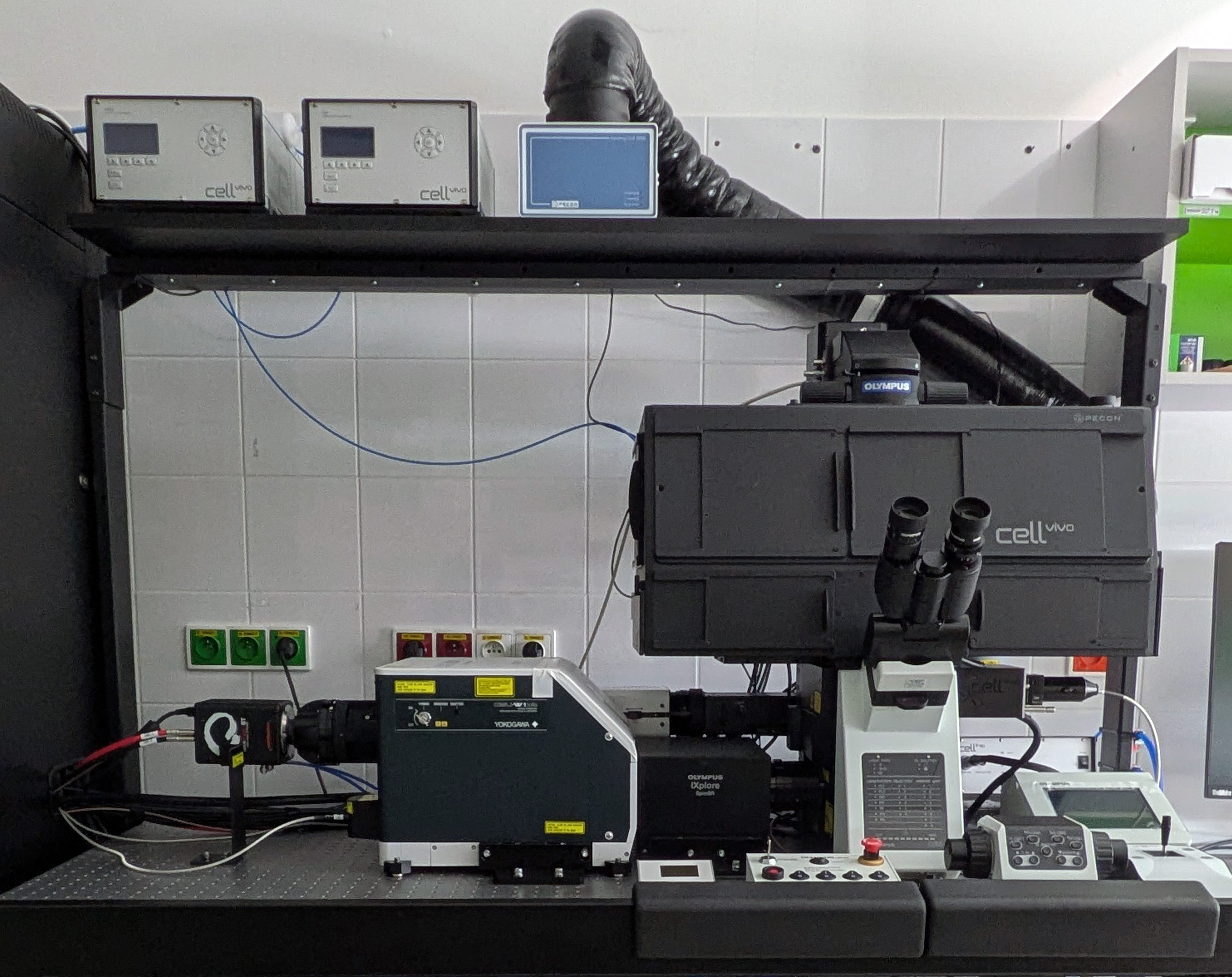

The IXplore SpinSR SoRa is a fully motorised spinning disk confocal microscope designed for high-speed, gentle live-cell imaging. Built on the Evident IX83 platform, it features a motorised objective turret, drift focus correction (DFC), and SoRa super-resolution technology, achieving ~120 nm lateral and ~300 nm axial resolution. With a microlens-enhanced dual Nipkow disk, sCMOS cameras, and 405–638 nm excitation, it supports 200 fps imaging, multimodal acquisition (widefield, confocal, super-resolution), and includes 405 and 488 nm FRAP lasers for photobleaching experiments. Integrated with cellSens, it enables precise multi-dimensional imaging, making it ideal for advanced cell biology and neuroscience research.

Methods

• Confocal spinning disk with 50um pinholes (standard confocal)
• Confocal spinning disk with SoRa technology (enhanced resolution up to 120 nm)
• Transmitted Light Imaging
• Tile-Scanning & Image Merging
• Dynamic Experiments: Includes time-lapse and multi-position imaging capabilities with HW autofocus
• Photo-Kinetic Studies: Suitable for experiments like photobleaching (FRAP) and activation
• Drift Focus Correction (DFC) system based on IR laser for real-time imaging and precise Z-axis stabilisation
